OEM 2025 Forged Aluminum Alloy Part For Airplane Propeller,Metal Forging Parts, Aluminum Forging Part

JIMA Aluminum
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

OEM 2025 Forged Aluminum Alloy Part For Airplane Propeller,Metal Forging Parts, Aluminum Forging Part

Brand Name : JIMA

Model Number : ALP

Certification : ISO9001-2008,SGS,ROHS.

Place of Origin : CHINA

MOQ : Negotiations

Price : Negotiations

Payment Terms : T/T, L/C

Supply Ability : 10000 pcs /per month

Delivery Time : 10~20days

Packaging Details : wooden pallet

Application : Medical

Name : OEM 2025 Forged Aluminum Alloy Part For Airplane Propeller,Metal Forging Parts, Aluminum Forging Part

Standard : JIS, DIN, BS, ASTM, SAE.

Alloy : AL2025, Customize

Sample : Can be Customized

mold : Can be Customized

Surface treatment : Anodizing,Plating,Satin,Painting,Powder Coating,Anodized etc

Process : Forging

Contact Now

OEM 2025 Forged Aluminum Alloy Part for Airplane Propeller/Automotive Bodies​/Screw Fittings/Auto Parts /Forged Wheel

Company Profile

On May 10, 2011, Shanghai Jima Industrial Co., Ltd was established.

JIMA Aluminum mainly forging, and specialized in the production of big forging parts, aluminum precision, aluminum extrusions, metal forging processing, heat treatment, etc., has formed a complete production process from raw materials to the finished product aluminum accessories chain.

Material is the life of forging. The quality of forgings has always been inseparable from the quality of materials.

Jima Aluminum relies on its technical advantages, starting from making materials, and making its own high-quality aluminum alloy forgings. From the beginning of material smelting, material composition, microstructure, performance, material deformation process, forging streamline, forging heat treatment, metallographic structure, forging surface and appearance, forging thermal stability, etc., to fully control the quality of forgings.

Has rich experience in the production and processing of high-strength and wear-resistant aluminum alloy materials and alloy steel products.

Advantage: JIMA Aluminum always holds on to some available hard aluminum alloy materials stock such as 2A12 2A14 2014 2024 2214 2218 2219 2618 2017 5083 6061 6082 7049 7075 7050 7475 7175 7A04.

There are about 175 employees and a total area of 40,000 square meters.

Has rich experience in the production and processing of high-strength and wear-resistant aluminum alloy materials and alloy steel products.

Our Advantages

1. 3 technical patents and 2 practical patents related to high-silicon aluminum alloy melting, crystallization, and forging

2. Multiple professional presses adapted to the deformation speed of high-silicon aluminum alloys

3. Two intermediate frequency heating furnaces suitable for heating weak magnetic materials such as high-silicon aluminum alloys

4. Perfect forging process of various pistons and swash plates, mold tooling technology, materials, and product inspection standards.

5. The close cooperative relationship between the company and the university scientific research is our strong technical backing.

6. We are high-tech enterprises

7. Development capability: aluminum alloy, titanium alloy, super alloy, non-ferrous metal forging development


Product Details

Material Aluminum Alloy 2025
Process Forging+CNC+Heat Treatment
Surface Treatment Transparent / Color Anodized;Hard Anodizing;Powder Coating;
Sandblasting, Laser Carving, Silk Screening;
Nickel-Plated, Chrome, Galvanized, Silver/Gold Plating;
Black Oxide Coating; Polishing; etc...
Manufacture Ability Depends On The Complexity Of Different Products And Quantities
Experience Aluminum Machining Service for 12 ears
Packaging Standard Export Wooden Pallets
Another Request According to Your Need
MOQ 1pcs
Sample Can be Customized
Mold Can be Customized
Lead Time

Mold for 15-20Days

Process for 15-20Days

OEM Can Be Customized

Chemical Composition of 2025
Alloy Si Fe Cu Mn Mg Cr Zn Ti Others Al
Each Total
2219 0.50 - 1.2 ≤ 1 3.9 - 5.0 0.40 - 1.2 ≤ 0.050 ≤ 0.10 ≤ 0.25 ≤ 0.15 ≤ 0.050 ≤ 0.15 Rest

Physical Properties Original Value Comments
Density 2.81 g/cc AA; Typical
Mechanical Properties Original Value Comments
Hardness, Brinell 110 AA; Typical; 500 g load; 10 mm ball
Hardness, Knoop 138 Converted from Brinell Hardness Value
Hardness, Rockwell A 44.2 Converted from Brinell Hardness Value
Hardness, Rockwell B 69 Converted from Brinell Hardness Value
Hardness, Vickers 124 Converted from Brinell Hardness Value
Tensile Strength, Ultimate 58.0 ksi AA; Typical
Tensile Strength, Yield 37.0 ksi AA; Typical
Elongation at Break 19 %
@Diameter 12.7 mm
AA; Typical
Modulus of Elasticity 10400 ksi AA; Typical; Average of tension and compression. The compression modulus is about 2% greater than the tensile modulus.
Poissons Ratio 0.33 Estimated from trends in similar Al alloys.
Fatigue Strength 18000 psi
@# of Cycles 5.00e+8
completely reversed stress; RR Moore machine/specimen
Shear Modulus 27.0 GPa Estimated from similar Al alloys.
Shear Strength 35.0 ksi AA; Typical
Electrical Properties Original Value Comments
Electrical Resistivity 26.0 ohm-cir-mil/ft
@Temperature 20.0 °C
AA; Typical
Thermal Properties Original Value Comments
CTE, linear 12.6 µin/in-°F
@Temperature 20.0 - 100 °C
AA; Typical; average over range
24.5 µm/m-°C
@Temperature 20.0 - 300 °C
Specific Heat Capacity 0.880 J/g-°C Estimated from trends in similar Al alloys.
Thermal Conductivity 1070 BTU-in/hr-ft²-°F AA; Typical at 77°F
Melting Point 970 - 1185 °F AA; Typical range based on typical composition for wrought products >= 1/4 in. thickness. Eutectic melting is not eliminated by homogenization.
Solidus 970 °F AA; Typical
Liquidus 1185 °F AA; Typical

Key Words

forging metal 2025

auto parts 2025

spare parts 2025

forging 2025

forged aluminum 2025

forge 2025

forged 2025

cold forging 2025

forging machine 2025

hot forging 2025

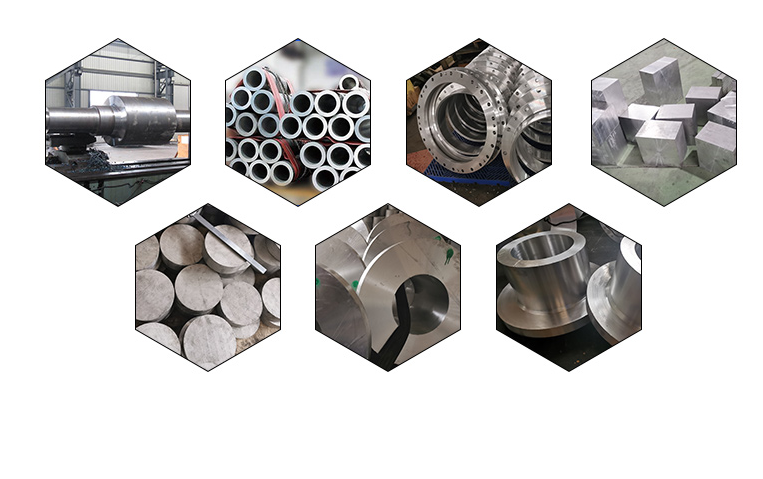

Product Show

OEM 2025 Forged Aluminum Alloy Part For Airplane Propeller,Metal Forging Parts, Aluminum Forging Part

OEM 2025 Forged Aluminum Alloy Part For Airplane Propeller,Metal Forging Parts, Aluminum Forging Part

OEM 2025 Forged Aluminum Alloy Part For Airplane Propeller,Metal Forging Parts, Aluminum Forging Part

Workshop Display

OEM 2025 Forged Aluminum Alloy Part For Airplane Propeller,Metal Forging Parts, Aluminum Forging Part

Equipment Capacity

Presses of 4000T, 3150T, 2000T, 1600T, 800T, 600T, 550T and 300T

5T, 2T, 750KG, three free forging hammers

4 axial diameters with diameters of 8M, 5M, and 2M

500 tons three-way forging press

450T double action press

400T friction press (4 sets)

630T hot forging friction press

4 heat treatment furnaces

Mesh belt heating furnace 6 sets

2 intermediate frequency furnaces

Machining CNC equipment 8 sets

OEM 2025 Forged Aluminum Alloy Part For Airplane Propeller,Metal Forging Parts, Aluminum Forging Part

OEM 2025 Forged Aluminum Alloy Part For Airplane Propeller,Metal Forging Parts, Aluminum Forging Part

Quality Inspection

Metal material universal testing machine

A complete set of equipment for material composition testing

High-power metallographic microscope (1400 times)

Low-power metallographic microscope (40 times)

3D, 2D Projection Mapper (CAM)

Brinell, Weber hardness tester

Test piece polishing machine

Analytical Balances

marking machine

Phosphor powder flaw detector

Our company has passed the quality attestation of ISO2001-9000 and has established a comprehensive ISO quality control system. Now the TS16949 management system is in process.

The quality control facilities (equipment, instruments, and talents) are available, including 3 ways measures, metallographic examination, intensity testing, material composition testing, measure inspection, etc. The academic research base has been founded in cooperation with universities and the practical training station has been set up for graduate students.

OEM 2025 Forged Aluminum Alloy Part For Airplane Propeller,Metal Forging Parts, Aluminum Forging Part

Production Procedure

OEM 2025 Forged Aluminum Alloy Part For Airplane Propeller,Metal Forging Parts, Aluminum Forging Part

After Services

OEM 2025 Forged Aluminum Alloy Part For Airplane Propeller,Metal Forging Parts, Aluminum Forging Part

Package&Shipment

OEM 2025 Forged Aluminum Alloy Part For Airplane Propeller,Metal Forging Parts, Aluminum Forging Part

OEM 2025 Forged Aluminum Alloy Part For Airplane Propeller,Metal Forging Parts, Aluminum Forging PartOEM 2025 Forged Aluminum Alloy Part For Airplane Propeller,Metal Forging Parts, Aluminum Forging Part

FAQ

Q1:Where can I get product&price information?

A1:Send us an inquiry e-mail, we will contact you as we receive your mail.

We will offer you the quotation within 24 working hours after receiving your detailed information. To quote you faster and more accurately,

please provide us with the following information together with your inquiry:

1) CAD or 3D Drawings

3) Material requirement

4) Surface treatment

5) Quantity (per order/month/annual)

6) Any special demands or requirements, such as packing, labels, delivery, etc.

Q2:How long can I get the sample?

A2:Depends on your specific items, within 3-7 days is required generally.

Q3: How long is the lead time for mold and machining parts?

A3: It all depends on the mold (parts) size and complexity.

Normally, the lead time is 18-20 days for molds. If the molds are very simple and not big, we can work them out within 15 days.

The lead time for machining parts is around 2-4 weeks.

For sheet metal fabrication the lead time is around 3-5 weeks.

Q4:Can we sign NDA?
A4: Sure. We never divulge customers' information to anyone else. we will keep your drawing well and not release it to others without your permission.

Q5: Is it possible to know how are my products going on without visiting your factory?

A5: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining or the plastic injection progress.
